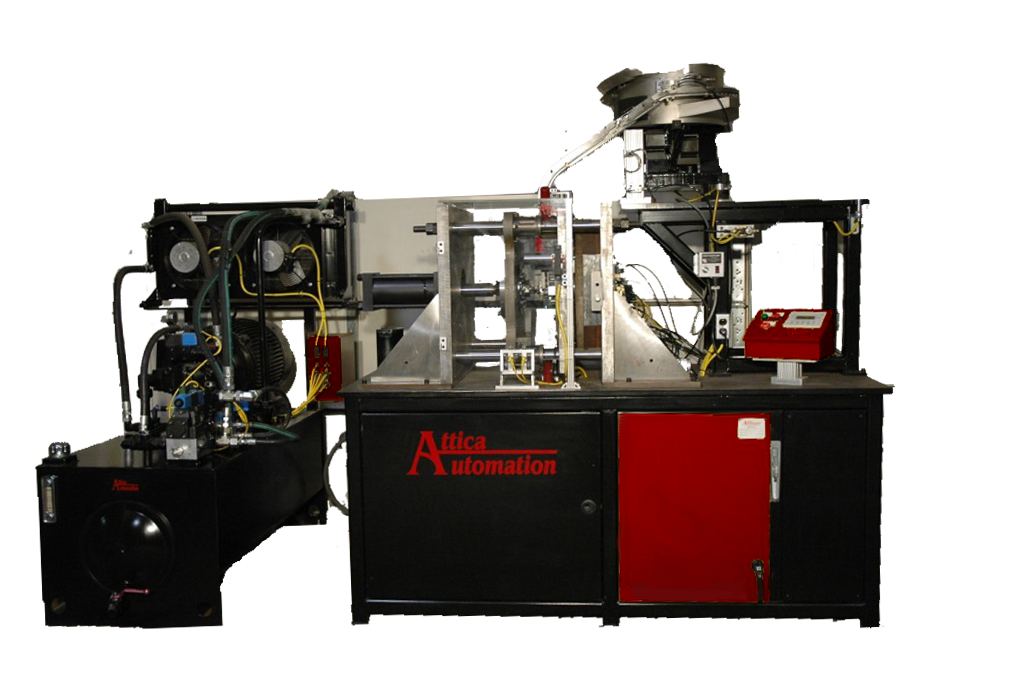

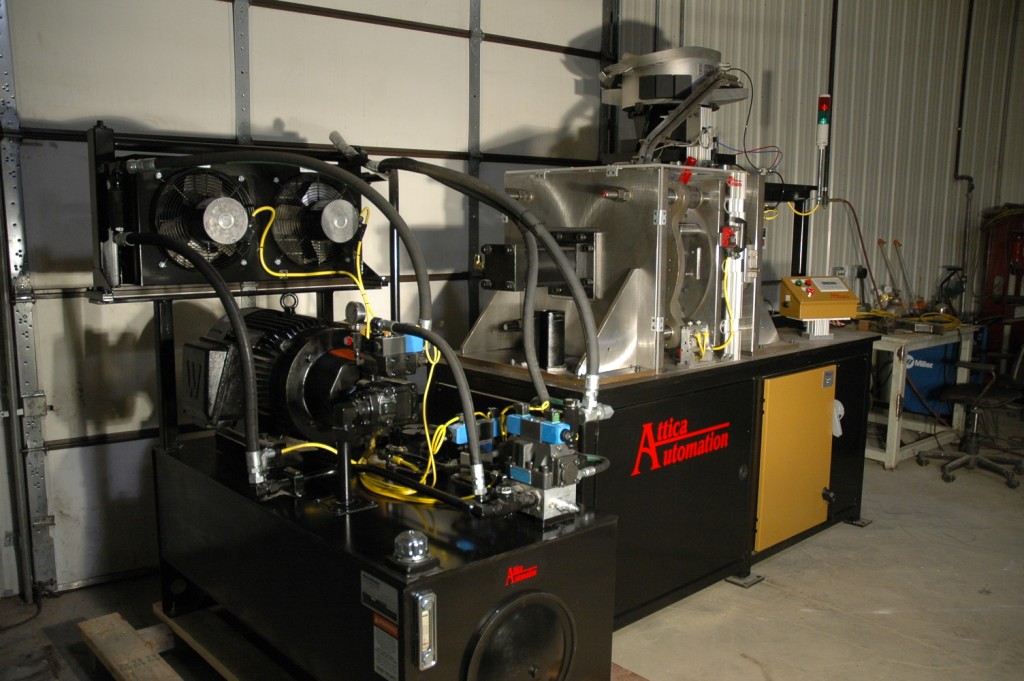

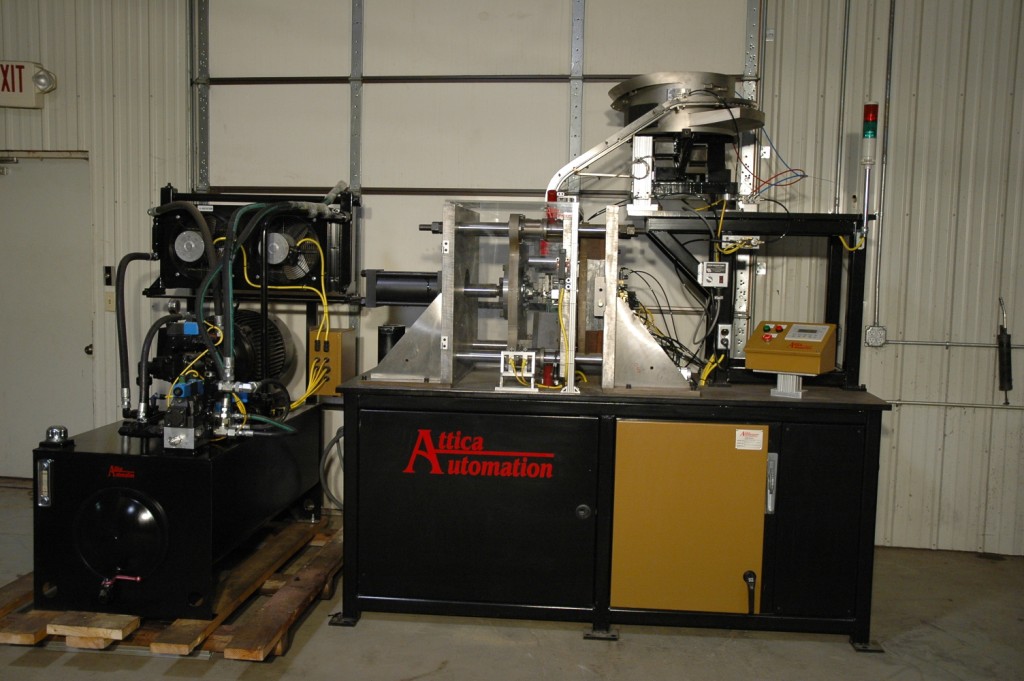

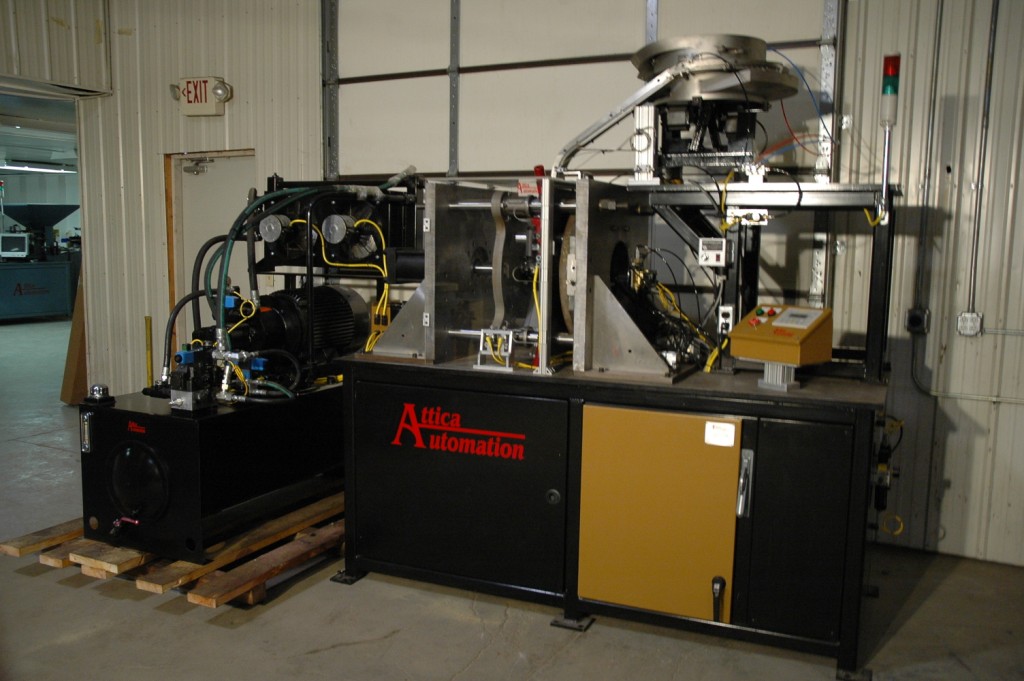

The AM-NL Nut Locking Machine is a mechanical forming machine that presses the locking feature into the nut. This specific machine was designed to create a double and triple sided locking feature on a range of nuts. The forming processes of the nut locking feature is produces through a 15 ton hydraulic press or a servo driven system. Once the parts are fed into the press station, the locking feature is created.

Each AM-NL Nut Locking Machine is tailored to the size and locking feature requested by our clients. The information for this specific example is stated below:
PART SPECIFICATIONS:
- Diameter – M3 to M12
- Locking Feature
- Side Lock – Double and Triple
- Top Lock – Double and Triple
- Speed – +100 PPM
REQUIREMENTS:
Power – 110v – 220v AC – 50-60HZ – 1 or 3 Phase
Air – 90 PSI

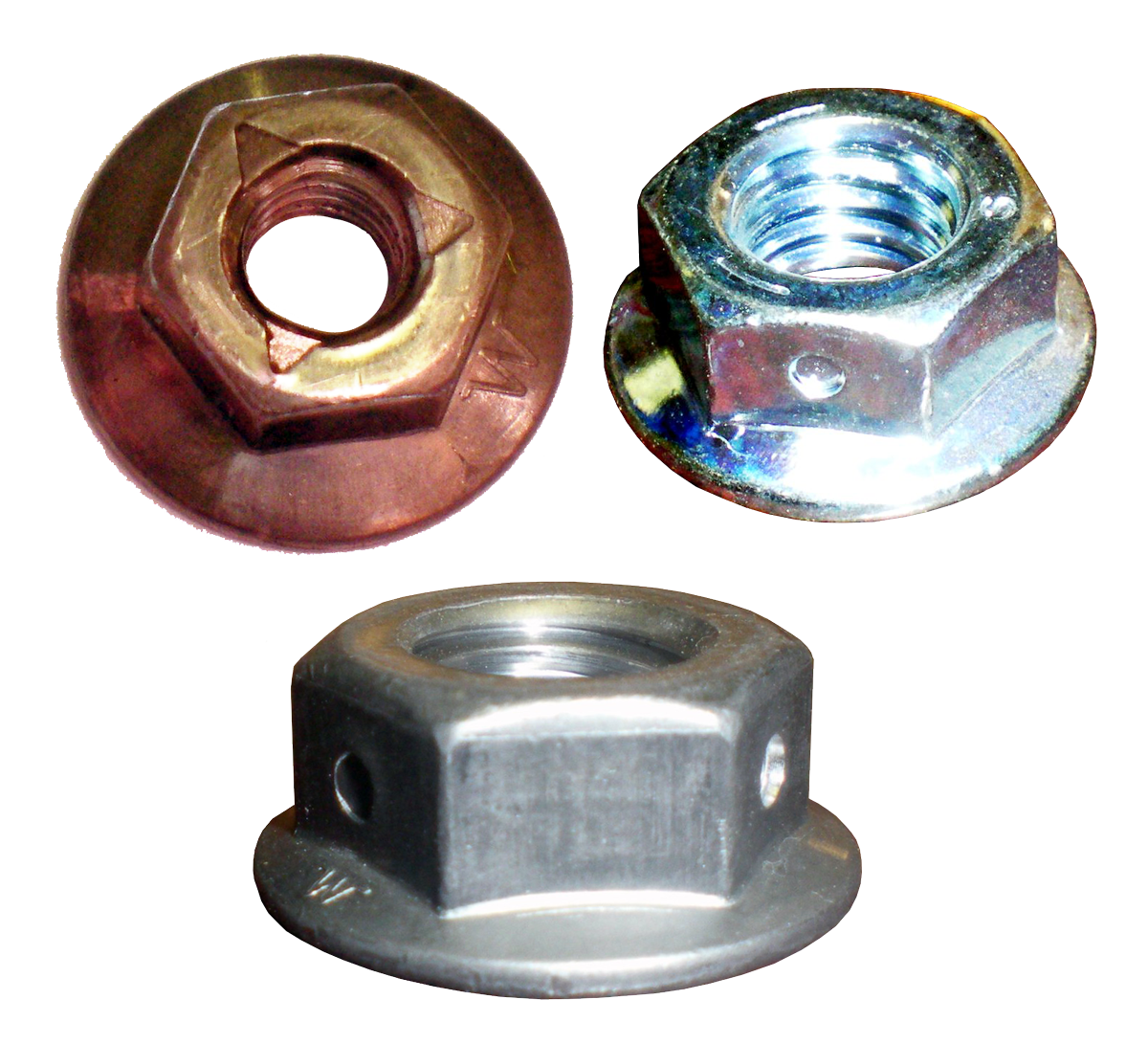

In this example, the client needed the following locking features:
- Three sided locking feature
- Double locking feature
- Single Feature on multiple faces
Don't see the locking feature you need? Don't worry! Contact us today to get a capability study done on your part.
Contact US
We see requests for many different options and specifications for each of our client. Some of the options available are:
- Top Lock Features
- Side lock Features
- Servo Driven Press
- Pressure/Force Monitoring
- Logo stamping
- Inspection Integration
