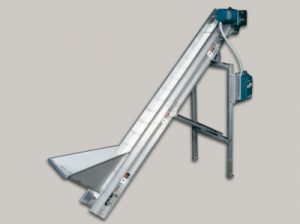

Model 335 Slider Bed Belt Conveyors

• 4” formed sheet metal frame – 12 ga.
• 3” side skirts are standard
• Modular construction
• Many standard options available

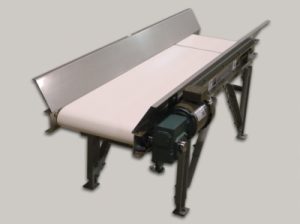

Model 335 Slider Bed Belt Conveyor – Flat Bed

• Bed and belt are flat with angled side skirts for product containment
• Portable designs for flexibility
• Many standard options available

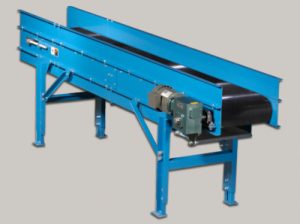

Model 660 Slider Bed Belt Conveyors

• 6” formed sheet metal frame – 10 ga
• 6” side skirts are standard
• Modular construction
• Custom designs by request

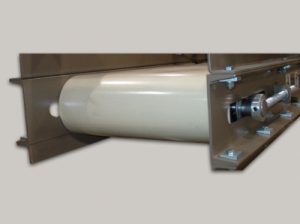

Heavy Duty Slider Bed Belt Conveyors

• Channel Frames are sized appropriately for specification
• Belt over flat roller designs
• Rugged slider bed designs
• Custom designs available

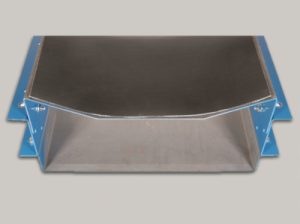

Model 335 Trough Slider Bed Belt Conveyor

• Bed and belt are troughed for product containment
• Portable designs for flexibility
• Custom designs available
• Also available in Trough Bed

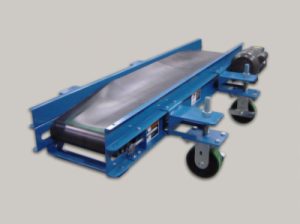

Model 660 Trough Slider Bed Belt Conveyor

• Bed and belt are troughed for product containment
• Portable designs for flexibility
• Custom designs available

Model 600 Cleated Noseover Conveyor

• Washdown drive
• Cleated RMV belt
• Infeed hopper
• Mill finish stainless frame
• Epoxy painted legs

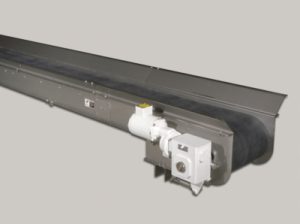

Model 12060 Horizontal Conveyor

• Washdown drive
• Trackmate belt
• Flared side skirts
• Mill finish stainless frame

Model 300 Noseover Conveyors

The 300 noseover conveyor line is constructed of 12 ga. material and designed for light to medium bulk, parts and scrap handling applications. Ideal for projects in which overall floor space is of concern. With the smooth transition from incline to upper horizontal it makes for ease of loading into dumpers, hoppers, grinders, shredders, etc. As with the parts conveyor lines the ability to use (1) belt and (1) drive keeps costs low. Live load capacities 20#/ft. up to 150# maximum on 45 degree incline.

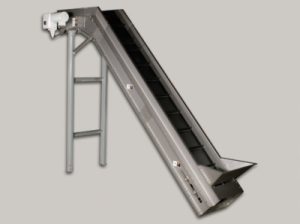

Model 600 Noseover Conveyors

Our 600 noseover line is designed with the same convenience in mind as the 300 line but with added versatility. With the proven method of return by wheels the segmented cleats allow for maximum effective widths while minimizing overall frame widths (EW + 3 = OAF). This line is ideal for feeding larger, heavier or wider products into dumpers, hoppers, balers, shredders and grinders. Made of 10 ga. construction. Options available for smooth transition from conveyor to additional equipment. Live load capacities up to 1000 lbs.

The Z-conveyor line is the most versatile line of conveyor of its kind in the industry. The “Z” design can help your operation save time and valuable floor space! Our rugged, modular construction is easy to install and easy to maintain.

Benefits of using the using the Z-style slider bed belt conveyor

• One continuous belt handles parts gently and effectively
• Makes the most efficient use of available space
• Reduces transition points to prevent spillage and reduce dust
• Numerous lengths, widths, and configurations are available
• Offered without the upper horizontal section (a.k.a. “C” Style) if desired
• Chutes, hoppers and custom transitions available

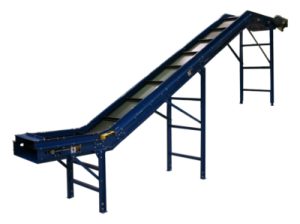

The Model 300 Z-Conveyor

• Will slide under machines with a low discharge height
• Will elevate product from under a machine to fill a container or feed a conveyor
• Makes product elevation changes easy and effective

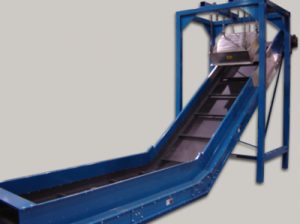

The Model 600 Z-Conveyor – Standard Duty

• This rugged design is great for heavier applications such as shredder feed or discharge
• Stamped or molded parts are very common products to be conveyed as well
• Can be adapted and used in conjunction with magnetic separation equipment or metal detectors

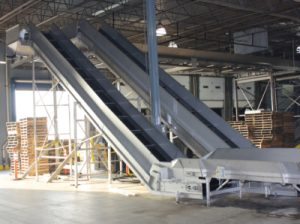

Custom Designs & Options

• Options include stainless steel and/or washdown construction, overhead magnets and magnetic pulleys, as well as complete controls packages
• Slider bed design is standard, roller bed is available
• If you don’t see something you need, just ask!
