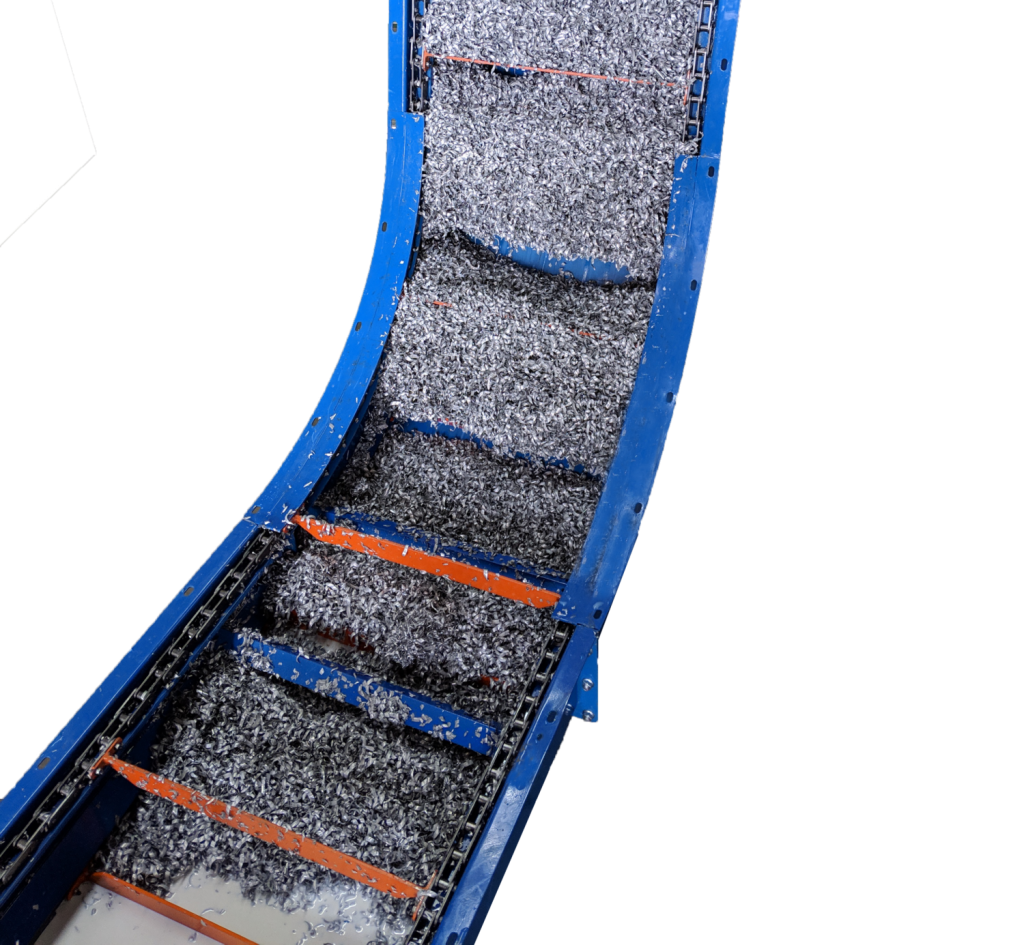

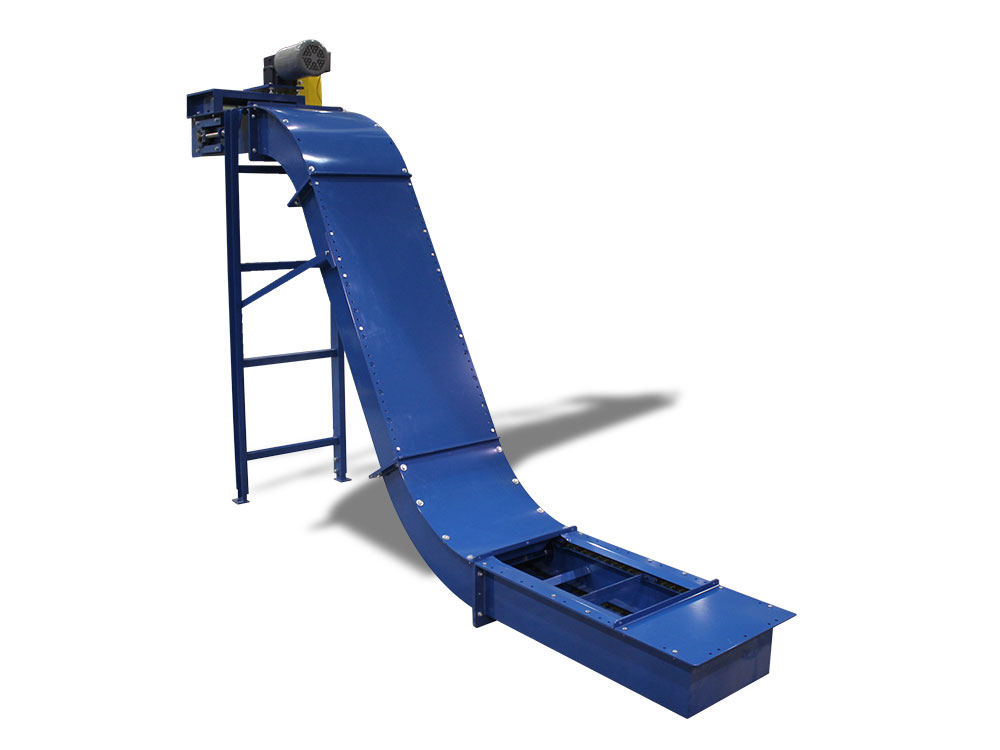

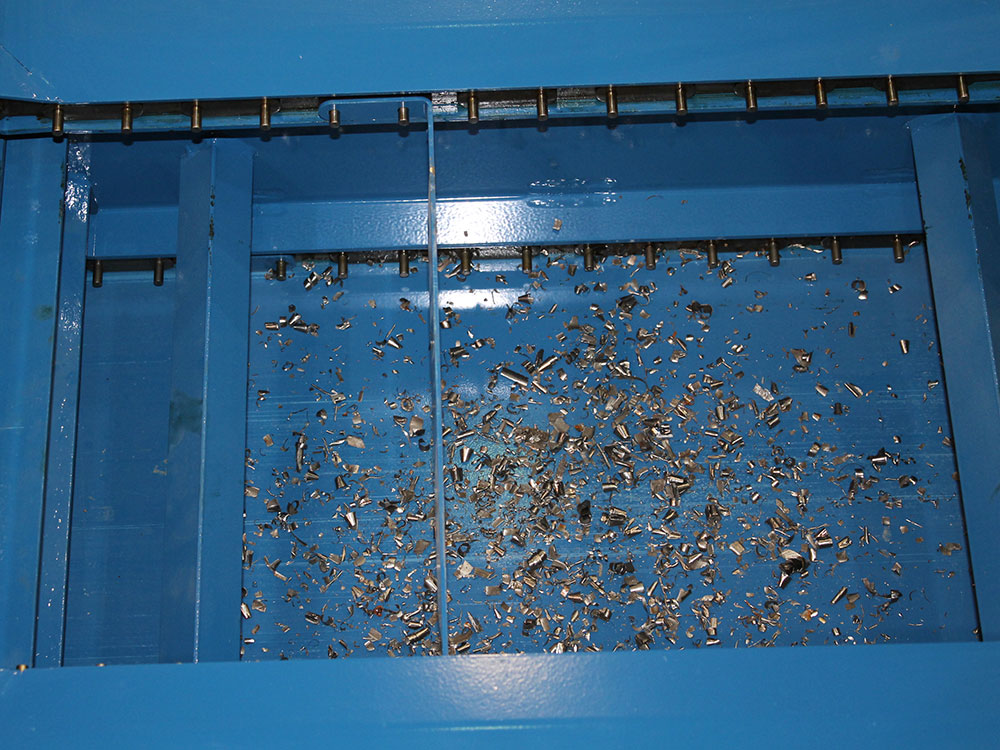

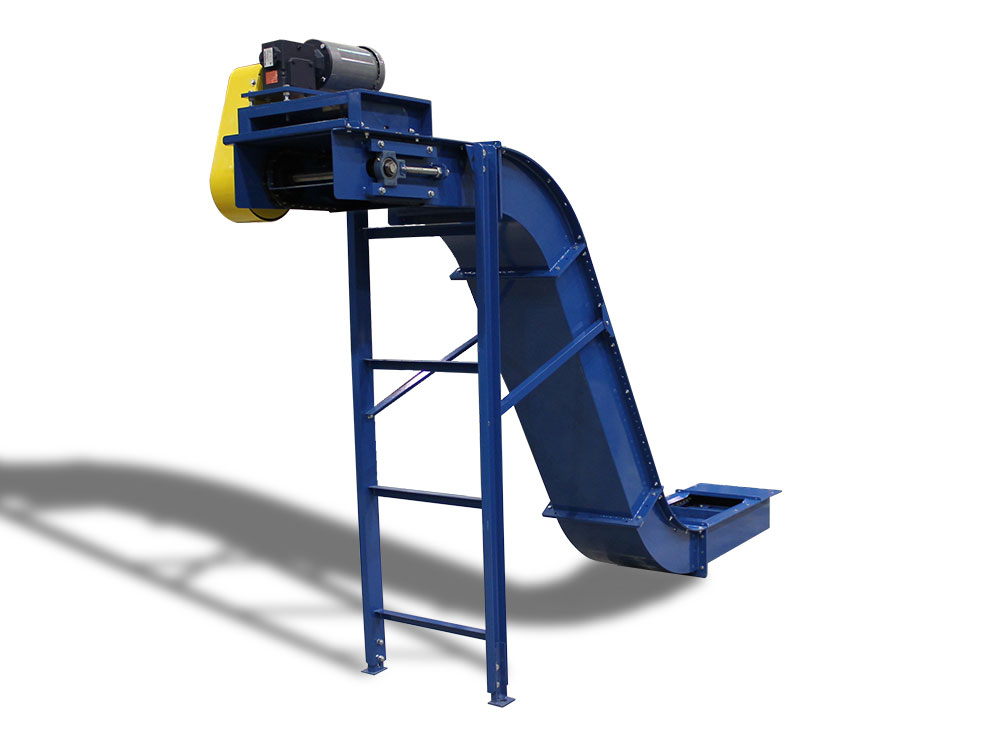

Our Drag Chain Flight Conveyor (also known as a scraper conveyor) was specifically designed for applications that are too abrasive or problematic for a steel belt conveyor and for non-ferrous materials that cannot be moved with a magnetic slide conveyor. It effectively moves small chips, fines and particles of steel, brass, bronze, cast iron or aluminum as well as, sludge and paste in fabricated metal product markets. EVI’s Drag Chain Flight Conveyor is commonly used in conjunction with other equipment such as, CNC, grinding, lapping and milling machinery.

Model 1500DC
- 8 5/8″ Frame Profile
- 1 1/2″ Pitch Chain
- 2″ Tall Steel Flights Standard
- Belt Widths from 6″ to 36″
- Removable Top Covers
- For fabricated metal manufacturing markets/applications

Model 2500DC
- 13 5/8″ Frame Profile
- 2 1/2″ Pitch Chain
- 4″ Tall Steel Flights Standard
- Belt Widths from 6″ to 36″
- Removable Top Covers
- For fabricated metal manufacturing markets/applications
Photos
