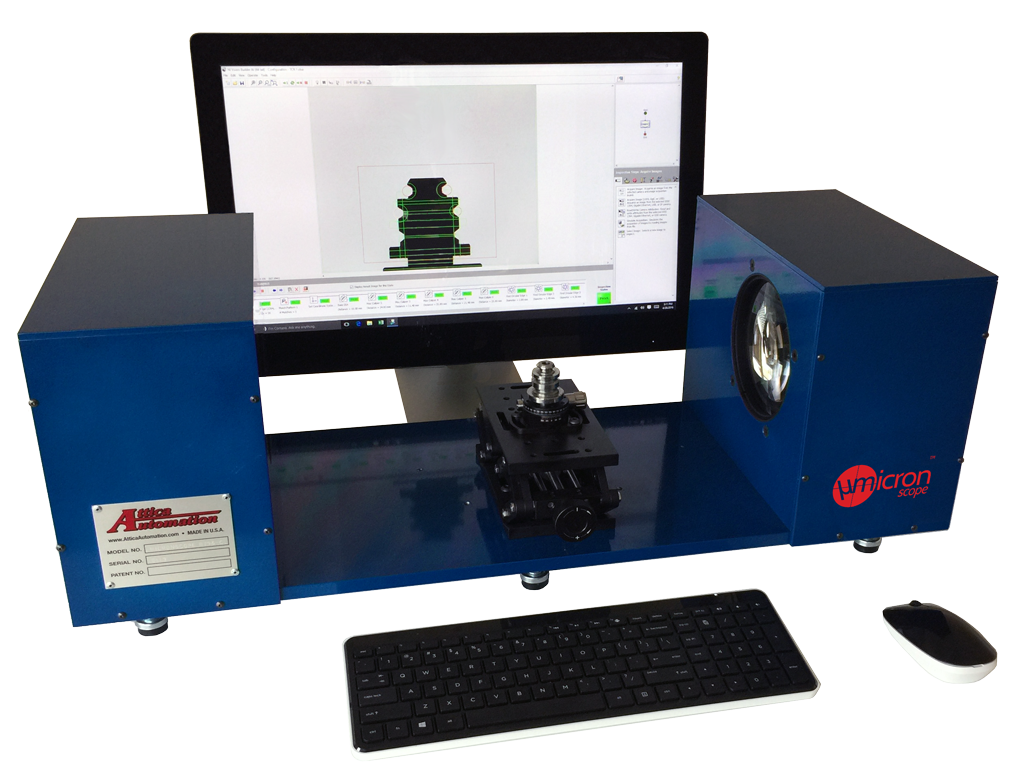

MicronScope™

PRECISION / VERSATILITY / REPEATABILITY / SPC

This premier inspection system incorporates the latest in precision vision technology to create an easy-to-use quality instrument. This system removes the need for traditional measuring tools, and it allows you to inspect your product quickly and accurately. With a full-featured set of inspection tools, you now have the ability to check virtually any feature of your part.

Contact USBrochure

  • Accurate within microns
  • All measurements are in real-time
  • Simultaneously measure multiple dimensions
  • Customized SPC / Quality reporting built-in
  • Single or Continuous image acquisition modes
  • Separate operator and programming interfaces
  • Full features inspection toolset to allow for customized inspection
  • User-friendly software package
  • Precision optics and lighting
  • Accuracy +/- (mm): 0.0077
  • Repeatability+/- (mm): 0.001
  • Area: 94mm x 75mm
  • Power: 100/220V – 50/60Hz
  • Weight: 60 lbs
  • High-precision Bi-Telecentric Len
  • Collimated telecentric LED backlight
  • Programmable motorized turn table
